Achieving flawless, durable powder coatings isn’t just about the powder or the gun – the powder coating booth is the often-overlooked critical hub dictating efficiency, quality, and your bottom line. This specialized enclosure performs a vital trifecta: it creates a controlled environment for optimal spraying, ensures operator safety by containing fumes and particles, and crucially, captures overspray powder – the key to cost control and environmental compliance.
Not all powder coating rooms are created equal. Operational needs vary dramatically. Understanding the distinct principles behind different booth types is fundamental to selecting the right system for your specific coating challenges. This article delves into how each booth works to deliver its unique advantages.
The Powder Coating Booth – Role, Function & Classification
The powder coating room is the critical core of any coating line, directly impacting finish quality, efficiency, safety, and cost.
Essential Functions:
- Controlled Environment: Provides a dedicated, clean space for spraying, shielding from contaminants and ensuring consistent application.
- Overspray Capture: Uses airflow (typically negative pressure) to immediately trap unused powder, preventing contamination and waste.
- Safety & Containment: Protects operators from airborne particles (OSHA compliance) and stops powder from escaping into the workshop.
- Recovery Foundation: Delivers captured powder for reuse or safe disposal.
Primary Classification by Focus:
| Feature | Fast Color Change Powder Coating Booth | Filter Recovery Powder Coating Booth |
| Core Goal | Minimize color change downtime (minutes) | Maximize powder recovery (>95%) |
| Key Design Driver | Speed & Flexibility | Efficiency & Cost Savings |
| Ideal Application | High-mix, low-volume; frequent color changes | High-volume; limited color changes |
Understanding this core distinction is vital. The we will detail how each type – the fast color change powder coating booth and the filter recovery powder coating booth – achieves its specific operational principle.

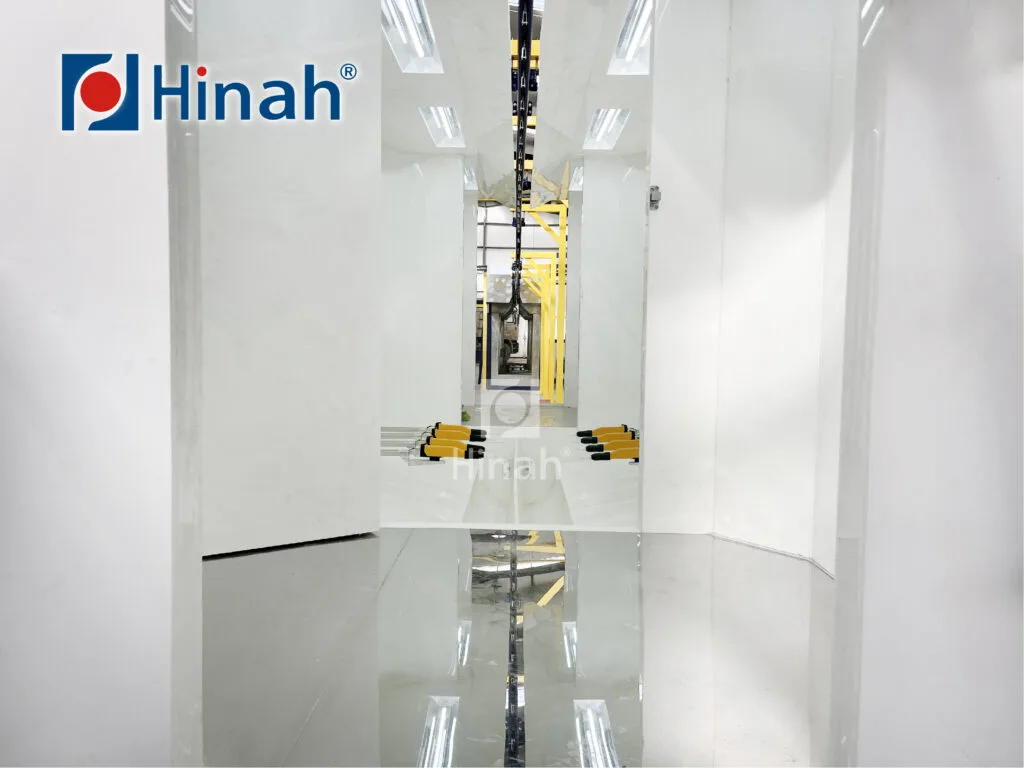

Deep Dive – How a Fast Color Change Powder Coating Booth Works
Working Principle:
The fast color change powder coating booth achieves rapid color changes by integrating negative pressure airflow with a modular, easy-to-purge design. Key airflow (typically 0.4-0.5 m/s) immediately captures overspray, pulling it towards dedicated, swappable filter modules. Crucially, the booth structure features non-porous, smooth surfaces (e.g., stainless steel) with minimal powder traps and integrated cleaning systems. This allows residual powder from the previous color to be removed quickly and completely from both the filters and the booth interior during changeover, preventing cross-contamination.
Fast Color Change Process Flow:
- Spray Completion: Coating with the current color finishes.
- Filter Purge: Automated pulse-jet cleaning activates, dislodging loose powder from the current filter cartridges/modules into their collection hoppers.
- Filter Module Swap: Operators quickly remove the entire filter module(s) used for the old color. Pre-loaded, clean module(s) for the new color are installed.
- Booth Interior Clean: Residual powder on walls, floor, and non-modular surfaces is rapidly removed using:
- Integrated compressed air wands or lances.
- Dedicated vacuum systems.
- Manual wiping (facilitated by smooth surfaces).
- Restart: Spraying commences immediately using the new color powder.

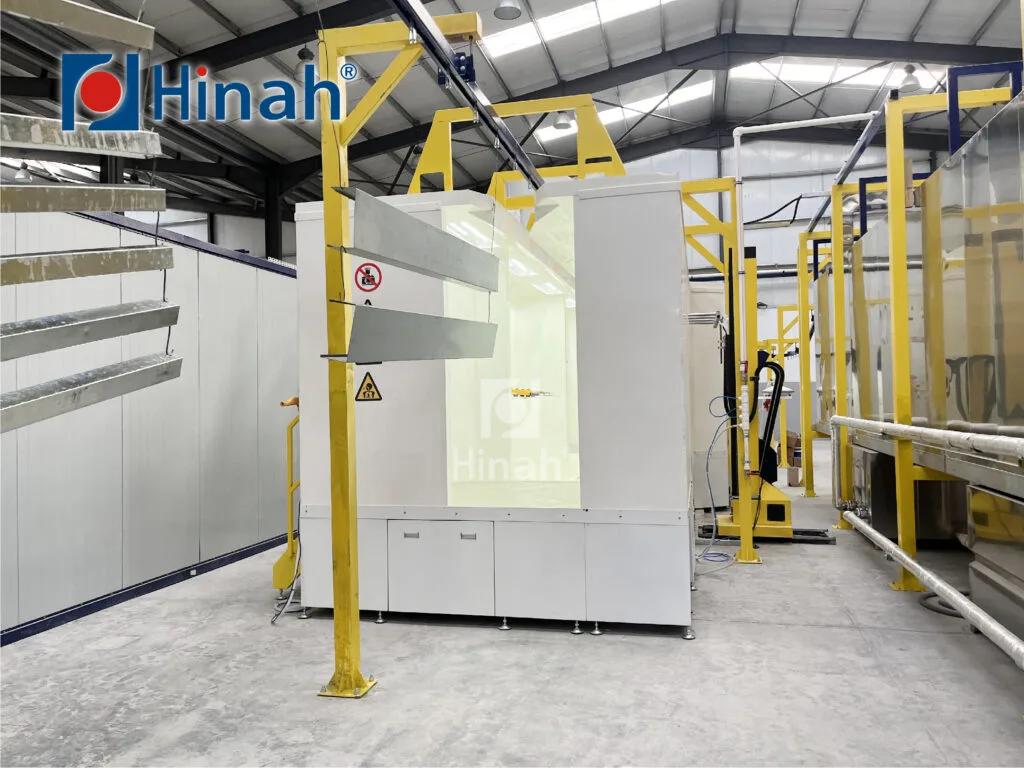

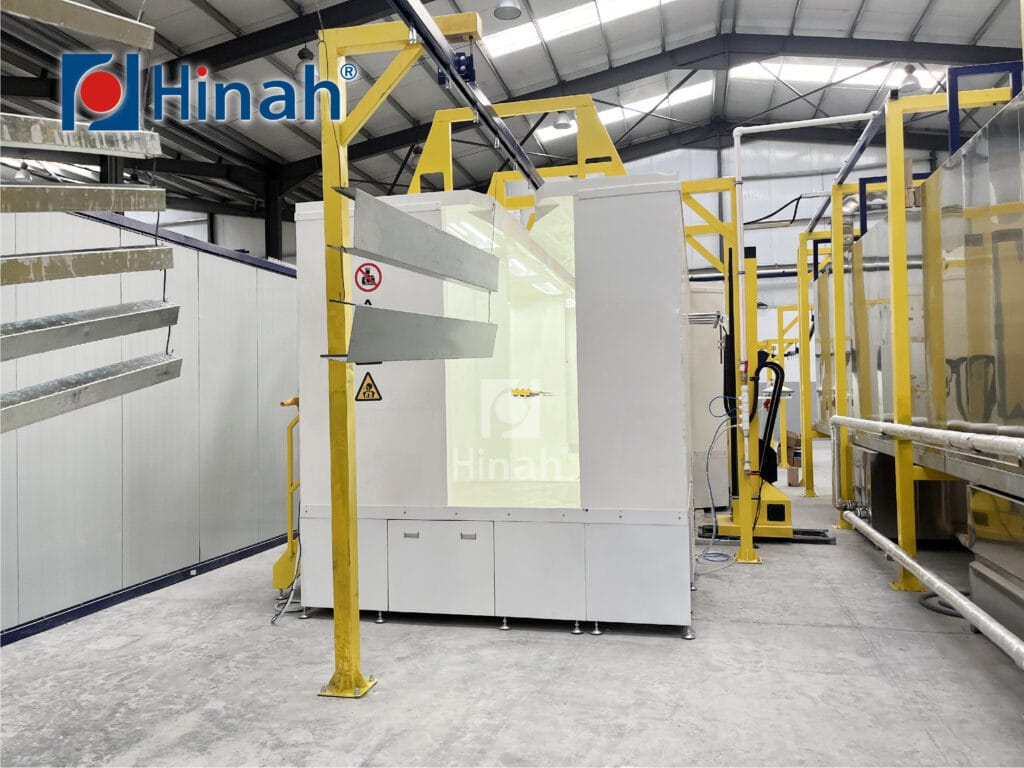

Deep Dive – How a Filter Recovery Powder Coating Booth Works
Working Principle:
The filter recovery powder coating booth is engineered for maximum powder reuse efficiency. It utilizes negative pressure airflow (typically 0.4-0.6 m/s) generated by an exhaust fan to draw overspray powder away from the workpiece and operator. This powder-laden air is forced through primary filter cartridges which capture the powder particles. The captured powder is then periodically dislodged from the filters (usually via reverse pulse jet cleaning) and collected for direct reuse. Clean air passes through the filters and is exhausted safely.
Powder Recovery Process Flow:
- Powder Capture: Negative pressure draws overspray powder into the booth’s airflow.
- Primary Filtration: Powder-laden air passes through filter cartridges. Powder particles are trapped on the filter surfaces; clean air passes through.
- Filter Cleaning (Pulse Jet): At timed intervals or based on pressure drop, compressed air pulses backwards through the filters, dislodging the captured powder cake.
- Powder Collection: Dislodged powder falls into a collection hopper or tray beneath the filters.
- Powder Reuse: Collected powder is typically sieved and fed back into the main powder supply system for immediate reuse.
- Clean Air Exhaust: The filtered, clean air is exhausted back into the workshop or outside.
Conclusion
The powder coating booth serves as the operational heartbeat of any coating line, fundamentally ensuring a controlled environment, effective overspray capture, operator safety, and OSHA/EPA compliance. While all booths share this core purpose, their design principles diverge sharply to solve distinct production challenges. The fast color change powder coating booth excels through modular filtration and optimized cleanability, prioritizing minimal downtime for frequent color switches. Conversely, the filter recovery powder coating booth leverages robust cartridge filtration and integrated pulse-jet recovery to achieve maximum powder reuse (>95%), focusing on cost efficiency in high-volume, limited-color-change scenarios.
Choosing the optimal powder coating booth hinges entirely on understanding these core working principles and aligning them with your specific operational needs. Evaluate your production volume, color change frequency, powder cost sensitivity, and efficiency goals. Investing in the right booth type is a strategic decision directly impacting coating quality, operational efficiency, and your bottom line.
