When looking at a perfectly coated product—smooth, flawless, and durable—it’s easy to forget the journey it has taken to get there. Behind the shine and color lies a highly orchestrated process that most people never see. An automated paint line isn’t just a row of machines working in sync; it’s a living system where every stage plays a critical role, from the moment a bare piece of metal enters the line to the second it emerges with a protective, polished finish.
Here, we’ll step inside the automated paint line and uncover what really happens behind the scenes. You’ll see how raw parts are transformed, how advanced equipment keeps the process running with precision, and what challenges hide beneath the surface of automation. Think of it as a backstage pass to one of manufacturing’s most fascinating performances.
Journey of a Workpiece Through Automated Paint Line
Imagine a raw metal part, cold and unfinished, arriving at the start of the automated paint line. The moment it hooks onto the conveyor, its transformation begins. Slowly, it glides forward—steadily carried into a carefully timed process where every step matters.
The first stop is pretreatment. Here, powerful sprays wash away oils, dust, and residues that would otherwise ruin the finish. Degreasing chemicals and rinsing stages strip the part bare, preparing it for what comes next. By the time it leaves this stage, the surface is clean, slightly etched, and ready to hold onto paint like canvas waiting for color.

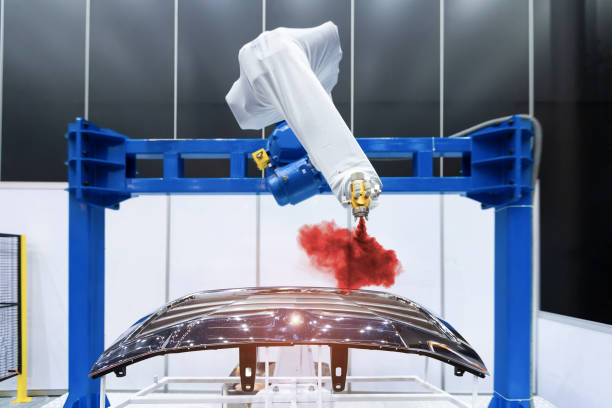

Next comes the coating booth, the heart of the automated paint line. Inside, electrostatic coating guns come to life, releasing a fine mist of powder or paint particles that cling to the metal as if drawn by magnetism. The booth hums with precision, balancing airflow, powder recovery, and coverage to ensure no area is missed—even the hidden corners of complex shapes.
From there, the freshly coated part enters the curing oven. Heat wraps around it, triggering chemical reactions that bond the coating to the metal. What was once powder or liquid now fuses into a solid, durable layer that can withstand scratches, weather, and time itself. When the oven doors open and the part rolls out to cool, the transformation is complete: a simple piece of metal has become a finished product, ready to serve its purpose.
Key Components That Power an Automated Paint Line
Behind every smooth finish is a set of machines and systems working together in harmony. An automated paint line isn’t just about coating parts—it’s about precision, timing, and control. Each component has its own role, and without it, the whole line would fall out of balance.
The conveyor system is the backbone of the process. It moves parts with steady rhythm, controlling speed and spacing so that each stage flows seamlessly into the next. Whether the parts are small brackets or large panels, the conveyor ensures they arrive at the right place, at the right time, every time.
Inside the coating booth, the real artistry happens. Here, electrostatic coating guns charge each paint or powder particle, pulling them toward the metal surface like magnets to steel. The booth isn’t just about applying color—it’s designed to minimize waste, with recovery systems that collect overspray and recycle it back into the process. This not only saves material but also keeps the environment cleaner.
Next comes the curing oven, where heat transforms the fragile coating into something tough and lasting. The oven doesn’t simply “bake” the parts; it follows precise temperature profiles, ensuring that the coating bonds evenly across every surface. The result is a layer that can withstand years of use without fading or peeling.
Overseeing it all is the automation control system. Like the conductor of an orchestra, it synchronizes conveyor speeds, spray patterns, airflow, and oven settings. Sensors and software constantly monitor the process, making adjustments in real time to keep quality consistent. This invisible layer of intelligence is what makes the automated paint line truly “automated.”
Together, these components form more than just a production line—they create a finely tuned system designed to deliver efficiency, repeatability, and uncompromising quality.
Hidden Challenges Within an Automated Paint Line
Even the most advanced automated paint line is not without its challenges. Coating complex-shaped parts can be tricky, as some corners or recesses may receive less coverage than intended. At the same time, balancing powder or paint consumption with recovery systems requires constant attention—waste not only increases costs but can also affect environmental compliance. Hidden energy consumption from ovens, conveyors, and spray systems adds another layer of concern, and regular maintenance is essential to prevent unexpected downtime. These behind-the-scenes issues may not be obvious at first glance, but they play a critical role in the efficiency and reliability of the entire automated paint line.
Conclusion
Stepping inside an automated paint line reveals a world of precision, coordination, and unseen challenges. From the moment a raw part enters the conveyor to the final flawless finish, every stage is carefully orchestrated, every machine playing its part. Understanding what happens behind the scenes not only highlights the sophistication of modern manufacturing but also shows the hidden efforts required to maintain efficiency, quality, and sustainability. The next time you see a perfectly coated product, you’ll know it is more than a finish—it’s the result of a complex, finely tuned process working silently, yet powerfully, behind the scenes.
