Over the past few years, powder coating line production has changed significantly. Many factories are no longer satisfied with simply increasing spraying speed. They are looking for more precise control, better powder utilization, smarter production processes, and more flexible factory layouts.
As product types become more diverse, traditional coating methods face new challenges. Different workpiece sizes can make spraying parameters difficult to adjust. Excess powder recovery affects material utilization. Heat released from curing ovens is often not fully reused. In addition, limited factory space creates challenges when expanding production capacity.
To solve these problems, new technologies are reshaping the modern powder coating line. Intelligent scanning systems, advanced powder recovery solutions, energy-saving curing ovens, and flexible conveyor designs are becoming key trends in 2026.
Smart Scanning Technology Improves Powder Coating Line Accuracy
One important trend in powder coating line technology is the application of intelligent scanning systems.
Traditional spraying processes often rely on fixed parameters. However, different workpieces may have different sizes, shapes, and surface areas. This difference can affect coating thickness and powder distribution.
A scanning system with optical sensors can identify the dimensions and specifications of each workpiece before spraying. The system collects information such as height, width, and surface position, then sends the data to the control system.
Based on the scanning results, the spraying equipment can automatically adjust movement speed, spray distance, and powder output. This allows the coating process to match different workpieces more accurately.
This technology is especially useful for production lines that handle various product models. It helps maintain consistent coating quality while improving the flexibility of automated production.
Cyclone Recovery Technology Improves Powder Utilization
Powder recovery technology is another key development direction in modern coating systems.
During powder spraying, not all powder particles attach to the workpiece surface. A recovery system collects the unused powder and processes it for reuse. Among different recovery technologies, the cyclone recovery system has become an important solution for high-efficiency powder collection.
A well-designed cyclone system can achieve powder recovery rates of up to 98% under suitable working conditions. It separates powder particles from the airflow through centrifugal force, allowing reusable powder to return to the spraying process.
This design improves powder utilization and creates a cleaner working environment. It also helps maintain stable powder quality during continuous production.
For factories with frequent spraying operations, an efficient recovery system is an important part of maintaining consistent coating performance.
Energy-Saving Curing Oven Design Becomes a Major Trend
The curing process is a critical stage in powder coating production because the coating needs controlled heat to achieve proper performance.
Modern curing ovens are developing toward more efficient heat management. One important improvement is the application of heat recovery technology.
During operation, the exhaust air from the curing oven still contains a certain amount of heat energy. Through optimized hot air circulation and heat recovery designs, part of this energy can be reused in the heating process.
This approach improves thermal efficiency and reduces unnecessary heat loss. At the same time, a well-designed airflow system helps maintain a more stable temperature inside the oven, which supports consistent coating quality.
As energy efficiency becomes increasingly important in industrial production, heat recovery design will continue to influence the development of future powder coating systems.

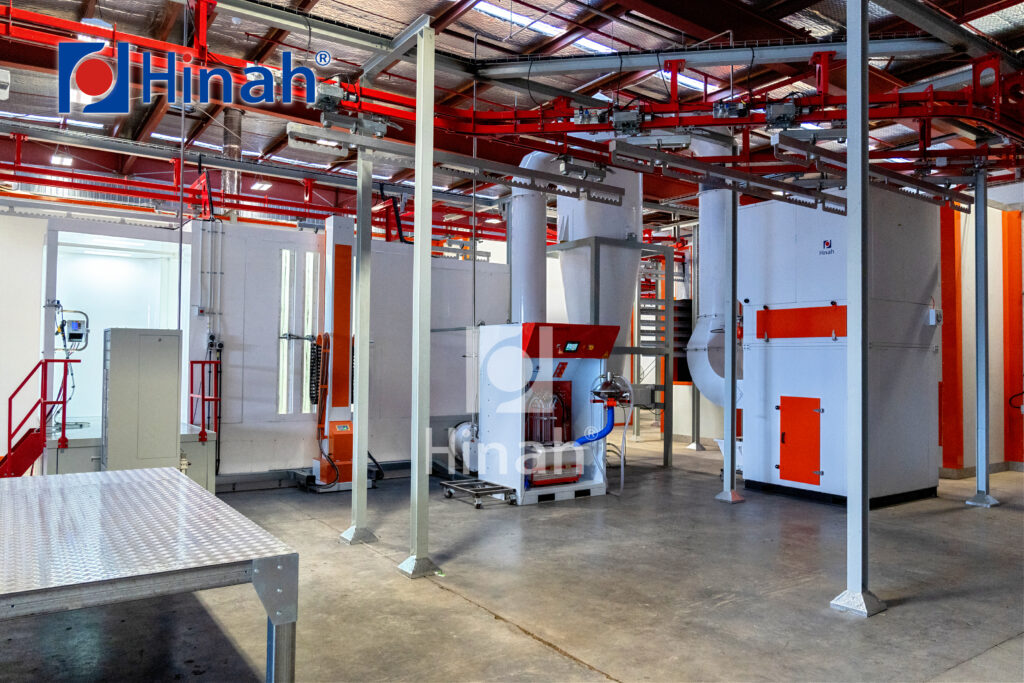

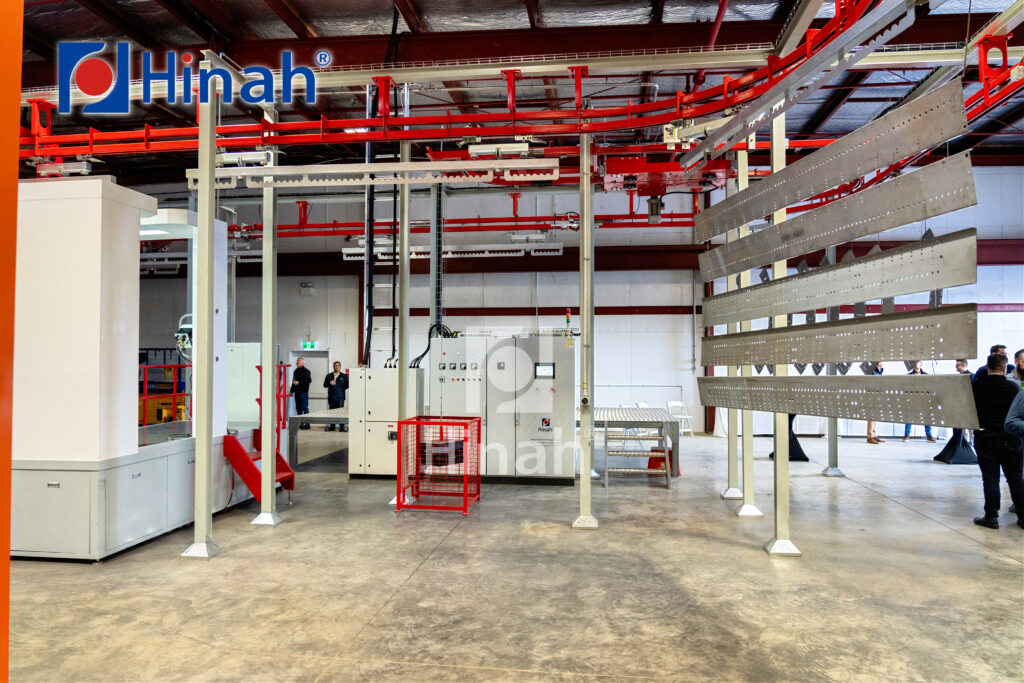

Power and Free Conveyor Helps to Maximize Space Utilization
Factory space optimization is another important trend in coating system design.
The power and free conveyor system provides greater flexibility compared with traditional floor conveyor layouts. Because the conveyor can move vertically and horizontally, it allows better use of three-dimensional factory space.
This design can significantly reduce the floor area required for production while maintaining efficient material transportation.
Another advantage of the power and free conveyor is its separated chain and carrier structure. The chain moves independently from the load carriers, which reduces running resistance during operation.
As a result, the system requires less driving force and can operate with lower energy consumption. At the same time, its strong load capacity and stable structure make it suitable for transporting different types of workpieces.
The lower failure rate and flexible layout make power and free conveyor systems an important solution for modern automated coating production.
What These Technologies Mean for the Future of Powder Coating
The development of powder coating technology is not only about adding more automation equipment. The real change is that the entire coating process is becoming more connected and intelligent.
A modern powder coating line can now collect information from workpieces, optimize spraying parameters, recover unused powder, reuse heat energy, and adapt to different production requirements. These improvements help factories achieve more stable coating results while making production processes more flexible.
In the coming years, the most competitive coating systems will not simply focus on faster production. They will focus on smarter decisions, better resource management, and the ability to handle increasingly complex product demands.
