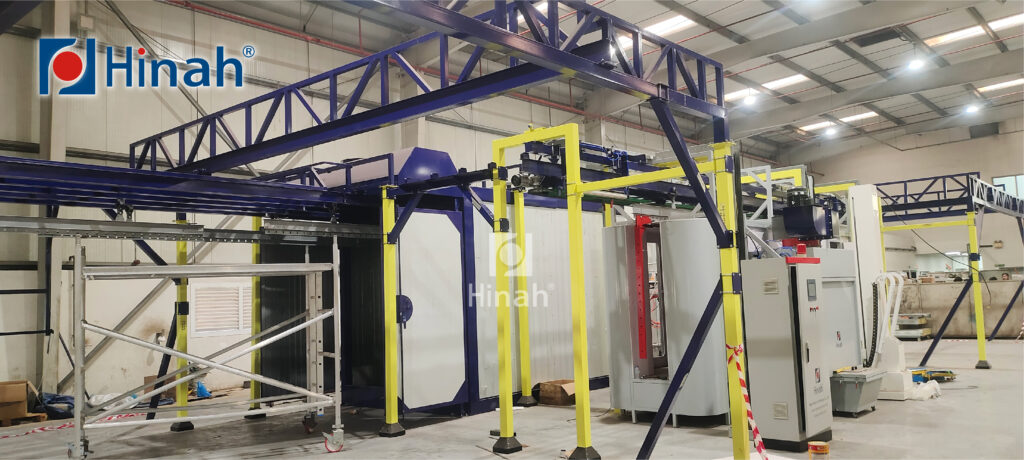

A flawless finish is the only standard that matters in industrial coating, yet a single drop of conveyor lubricant can compromise an entire shift’s output. For many plant managers running a horizontal powder coating line, “fish-eyes” and surface craters are persistent profit-killers. These defects don’t just ruin the aesthetics; they lead to expensive stripping, re-cleaning, and re-coating cycles that stall your production flow. Because the conveyor track sits directly above the workpieces in most horizontal layouts, gravity is constantly working against your quality control. Solving the oil drip problem isn’t just about cleaner parts—it is about protecting your bottom line and maximizing the uptime of your horizontal powder coating system.
Why Oil Contamination is a “Powder Coating Line Killer”
Oil and powder simply do not mix. When a drop of lubricant hits a bare metal part, it creates a “fish-eye.” This defect happens because the oil lowers the surface tension of the metal, preventing the powder particles from sticking or leveling properly during the gel stage.

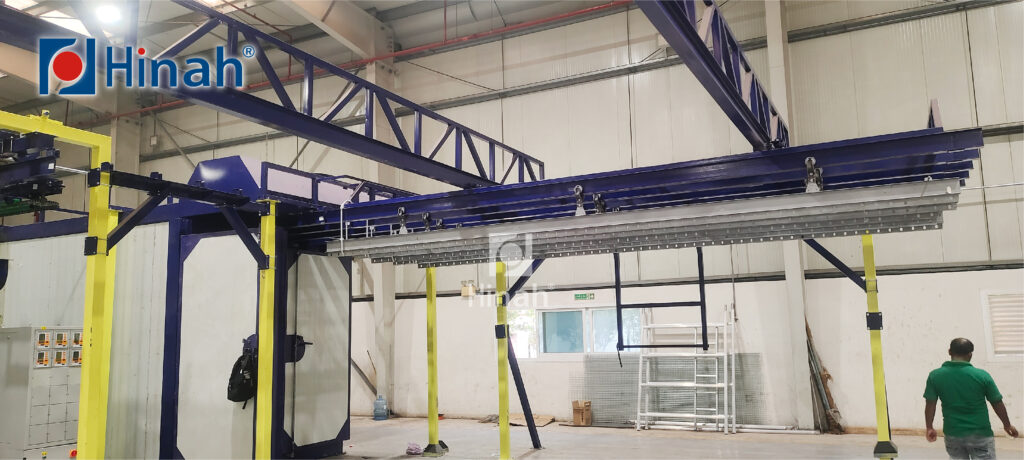

Fixing this is expensive and slows down your entire operation. You cannot simply spray more powder over the spot; the oil will just migrate through the new layer. Instead, you must strip the entire part, re-clean it, and put it back through the start of the line. This waste of time, chemicals, and energy directly eats into your profits. In a horizontal powder coating setup, the conveyor track sits directly above the workpieces. Gravity makes any excess oil a natural threat to every single part on the rack.
Common Reasons of Horizontal Powder Coating Conveyor Leaking Oil
Most leaks happen because of simple maintenance mistakes or environmental factors. First, many operators use too much oil. They think more lubrication reduces wear, but “weeping” links only lead to drips. Over-lubricated chains act like sponges, picking up dust and debris that eventually turn into a thick, oily sludge.
Second, the heat inside the powder curing oven is a major factor. Inside the oven, temperatures often reach 200°C. This intense heat breaks down the viscosity of standard lubricants. Even thick oil can run like water when it gets hot enough, especially at the oven entrance and exit where temperature shifts are most dramatic. Finally, mechanical wear plays a role. Worn-out chain links and trolleys eventually lose their ability to hold grease. As the chain bends around corners in a horizontal powder coating line, these worn joints squeeze out oil like a soaked sponge.
3 Simple Ways to Block Oil from Reaching Your Parts
Physical barriers are your first line of defense against gravity. In a horizontal powder coating environment, these simple mechanical adjustments can significantly lower your scrap rate.
Installing Drip Trays: One of the most effective tools is the drip tray or “catch pan.” By mounting U-shaped stainless steel shields directly under the conveyor track, you catch grease and oil before they fall toward the booth. However, these trays require a strict cleaning schedule. If you allow oil and dust to accumulate in the pans, the sludge can eventually overflow or blow off into the application zone.
Using Longer Hangers: Proximity is often the root of the problem. By increasing the vertical distance between the oily conveyor chain and the workpiece, you create a “safety zone.” Longer hangers ensure that minor splatters or oil mists dissipate before they reach the sensitive metal surface. This is a low-cost way to protect high-value parts without modifying the track itself.
C-Track Shields: If you are designing a new line or upgrading an old one, consider switching to enclosed “C” tracks. Unlike traditional open I-beams, C-track systems house the chain and trolleys inside a steel enclosure with only a narrow slit at the bottom. This design provides a permanent physical barrier that keeps the horizontal powder coating area much cleaner by containing the lubricant within the track housing.
Better Lubricant Choices for a Cleaner Powder Coating Line
Sometimes the hardware isn’t the problem—the liquid is. If your current oil cannot handle the heat, it will continue to migrate regardless of your shields.
Switch to Dry Lubricants: Many modern facilities are moving away from wet oils entirely. Dry-film lubricants, such as MoS2 (Molybdenum Disulfide) or Teflon-based sprays, provide the necessary slipperiness but contain no liquid carrier that can drip. Once applied, they bond to the metal links and remain stable, even in high-speed horizontal powder coating operations.
High-Temp Synthetic Greases: Standard lubricants often thin out like water when they hit the curing oven. To prevent this, use specialized high-temperature synthetic greases. These products are engineered to maintain their viscosity and stay “tacky” even at 200°C. They stay exactly where you put them—on the pins and bushings—rather than running down the hangers.
Automatic Drip Controllers: Manual oiling often leads to over-lubrication. Instead, install precision automatic drip controllers. these sensors only trigger a “micro-drop” of oil when the horizontal powder coating line is actually moving. By targeting only the wear points of the chain and controlling the volume, you prevent the excess pooling that leads to “weeping” links and eventual surface craters.
